Аксессуары Кронштейны RAM Кронштейн поворотный MB-38-RAM (000-0124-77)

Кронштейн поворотный MB-38-RAM (000-0124-77)

Артикул: 000-0124-77

Есть в наличии

Описание
Характеристики

Кронштейн предназначен для дисплеев размером 9'-12'.

RAM-109VU - крепление RAM® mounts для Lowrance, Humminbird, Raymarine, Garmin® и др. (MB-38-RAM)

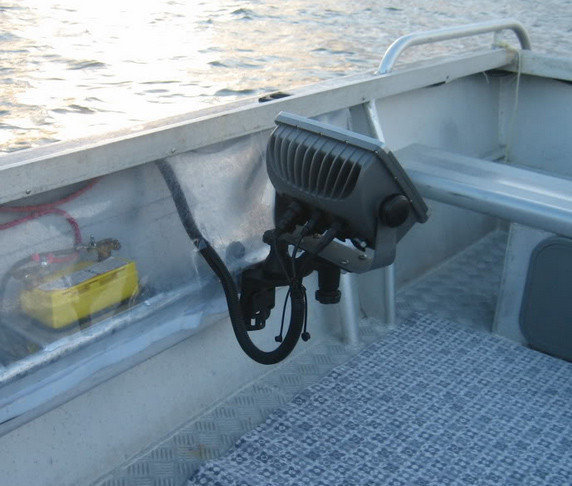

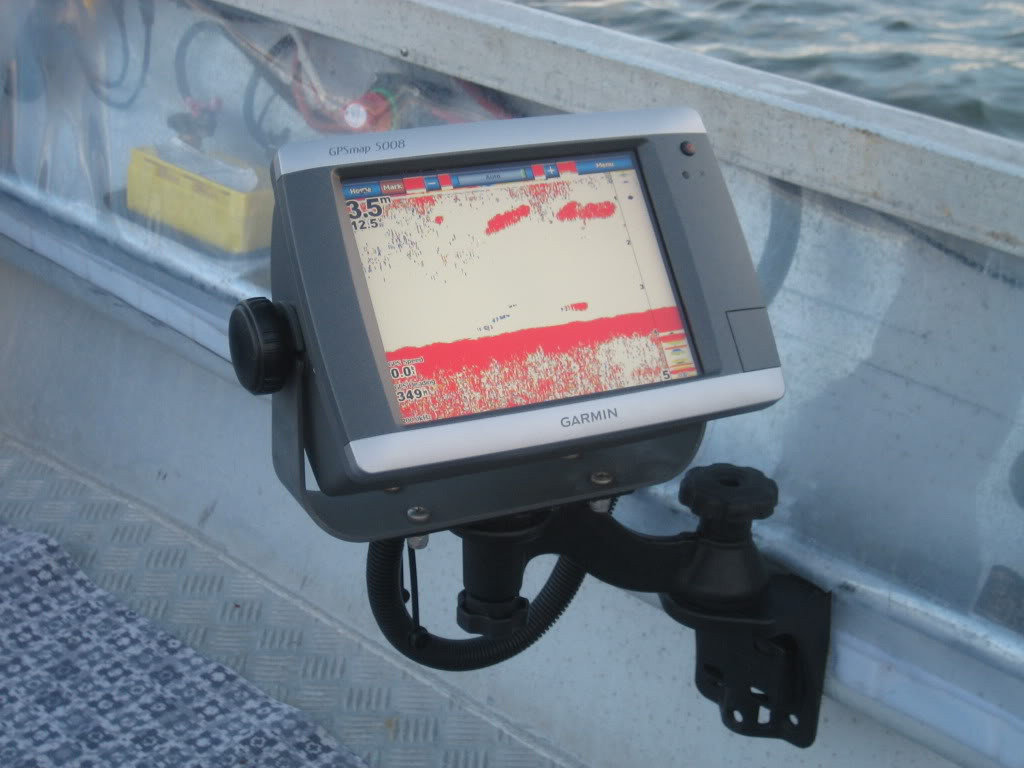

на боковую поверхность лодки и др. Алюминий, покрытый порошковой краской.

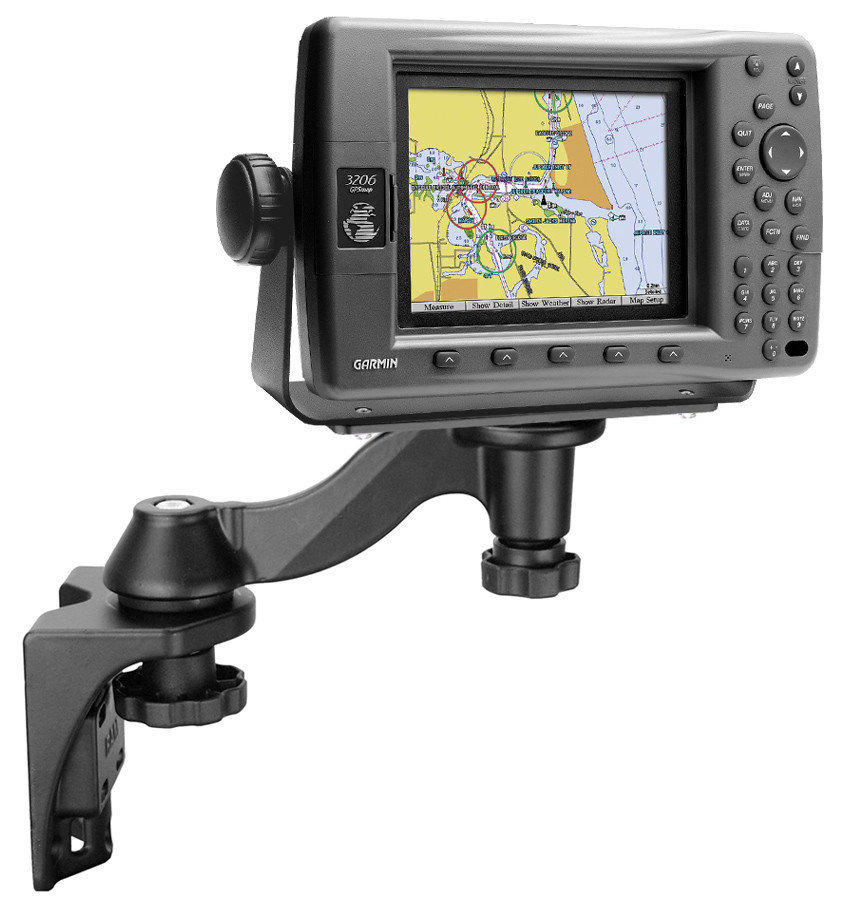

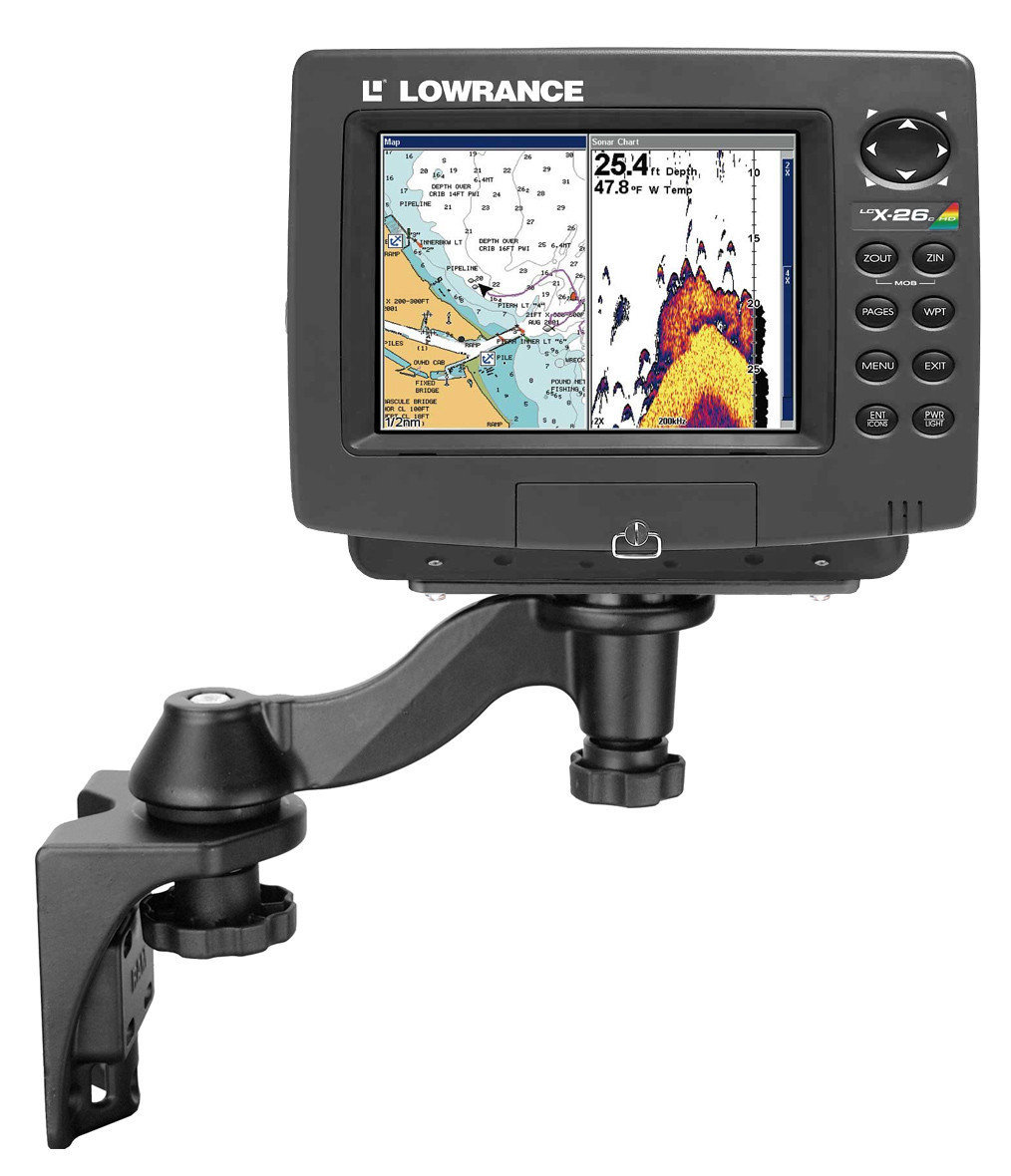

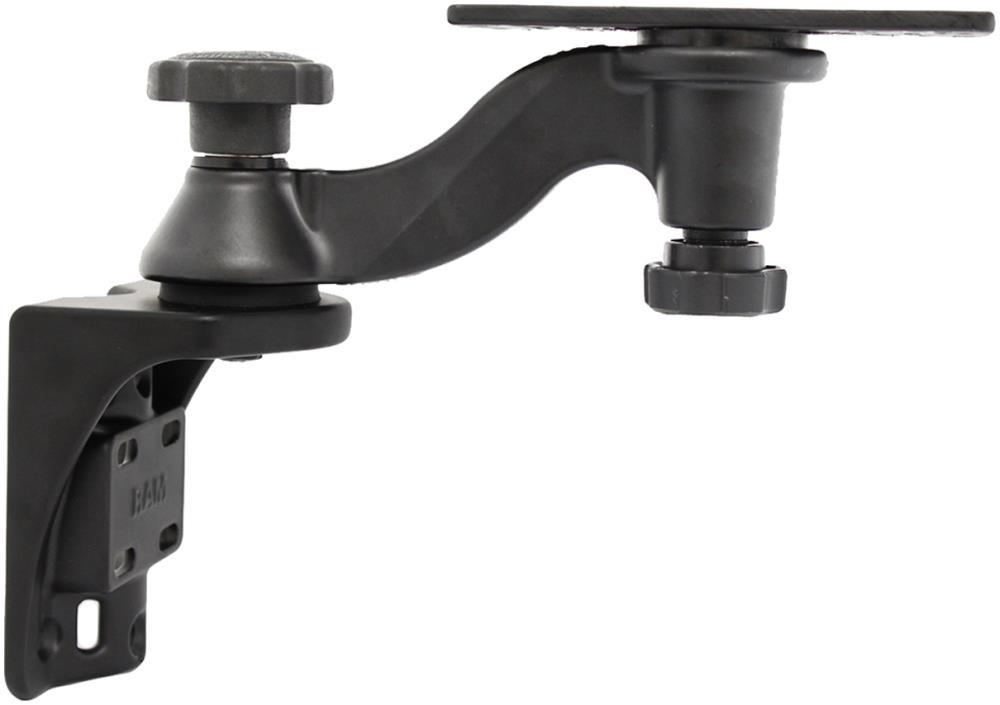

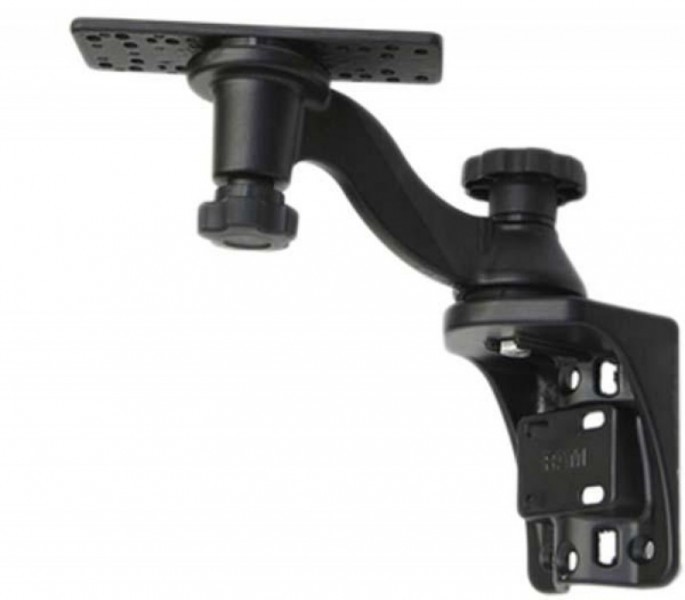

RAM Single 6" Swing Arm with 6.25" X 2" Rectangle Base and Vertical Mounting Base

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical
surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate.
There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center
of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360
degree rotation.

Specs & Features
Max Weight Capacity:
10 lbs.

Dimensions:
A. Center of knob to center of ball socket: 6"
B. Overall length of swing arm assembly: 11.4375"
C. Overall height: 8.45"

Material:
Powder Coated Marine Grade Aluminum

Note:
The "U" in the part number reflects product packaged in poly bag. The included plate is a universal
mounting bracket with a selection of mounting hole locations. In certain applications additional holes
may need to be drilled for proper fit with your electronic device.
