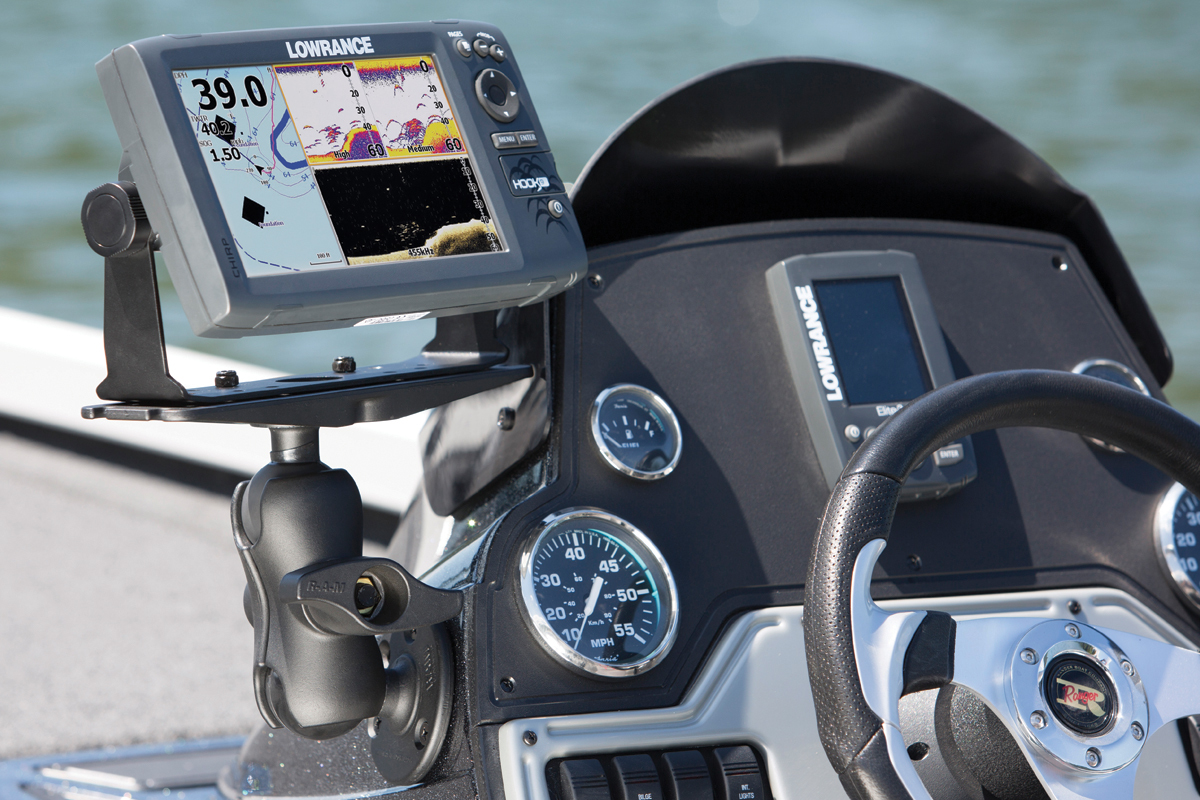

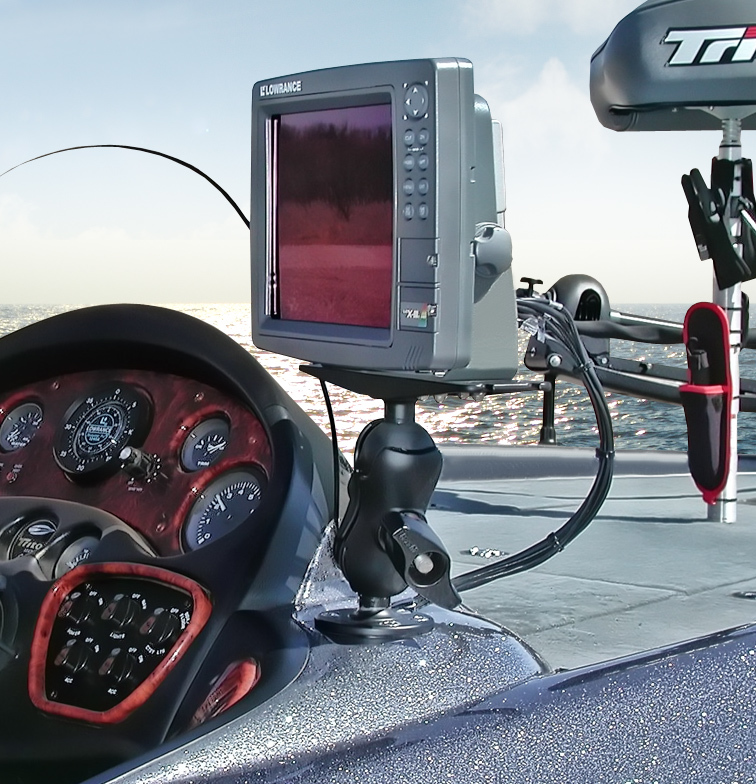

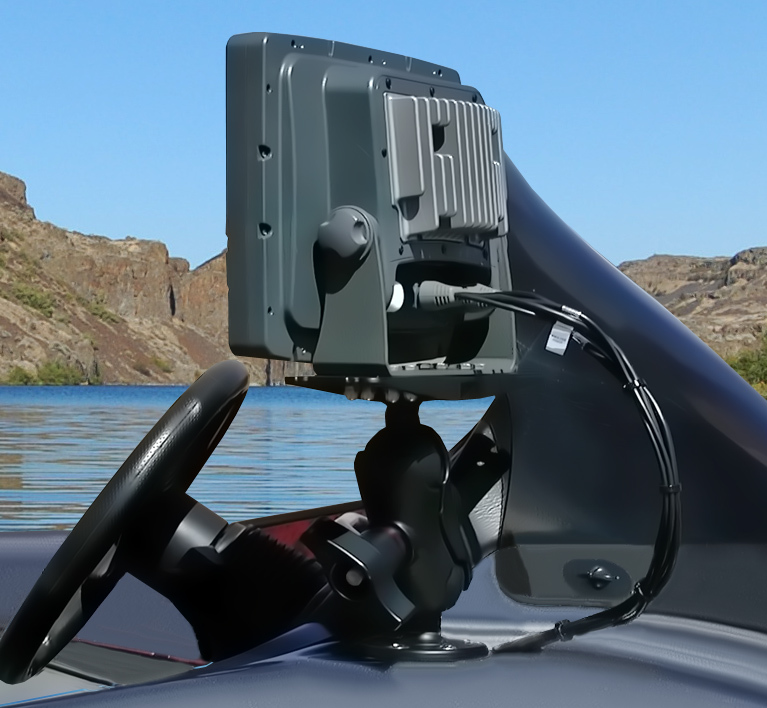

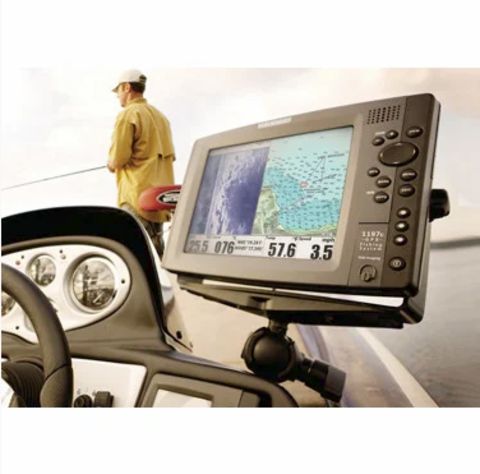

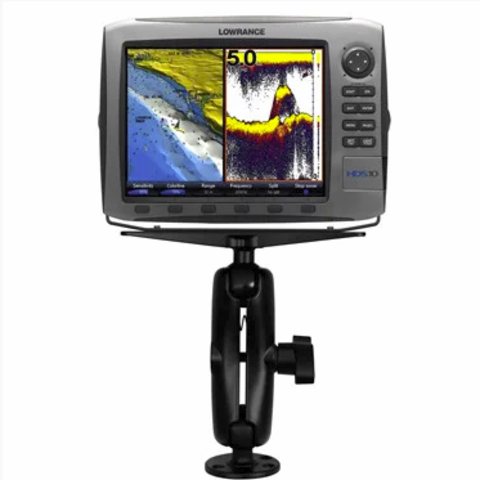

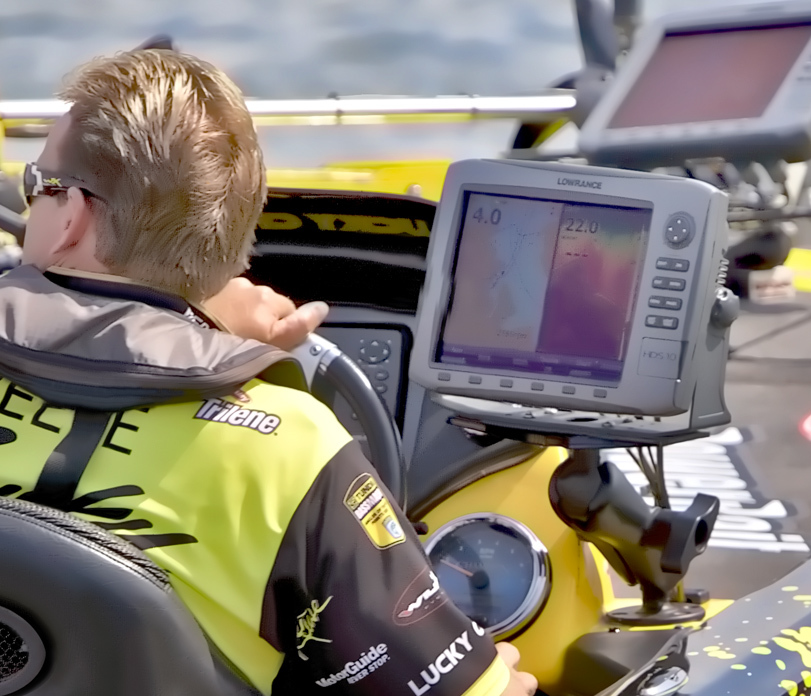

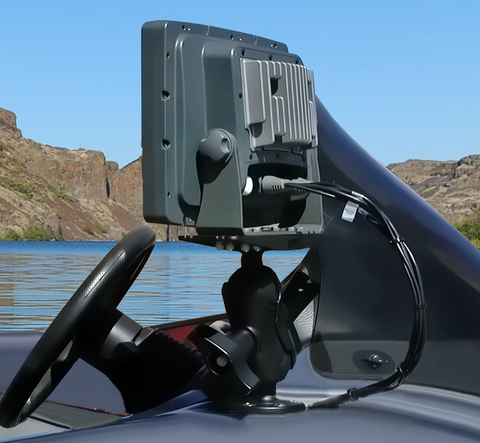

Кронштейн поворотный MB-36-RAM RAM-D-111U-C (000-0124-75)

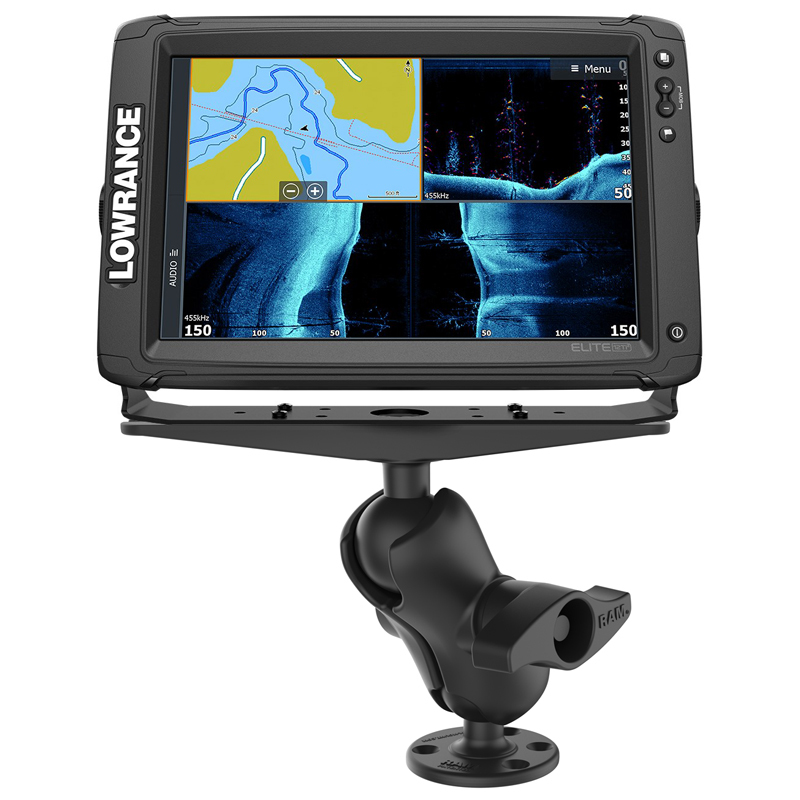

Кронштейн предназначен для дисплеев размером 9-12 дюймов, например:

• Lowrance Elite-9 Ti2;
• Lowrance Elite-12 Ti2;
• Lowrance HDS-9 Live (carbon, gen3, gen2);
• Lowrance HDS-12 Live (carbon, gen3, gen2);
• Garmin Echomap (plus) 93sv;
• Garmin Striker Plus 9sv;
• Raymarine Axiom (Pro) 9;
• Raymarine Axiom (Pro) 12.

RAM 2.25" Diameter Ball Mount with 3.68" Round Base, STANDARD Length Double Socket Arm & 11" X 3" Rectangle Plate

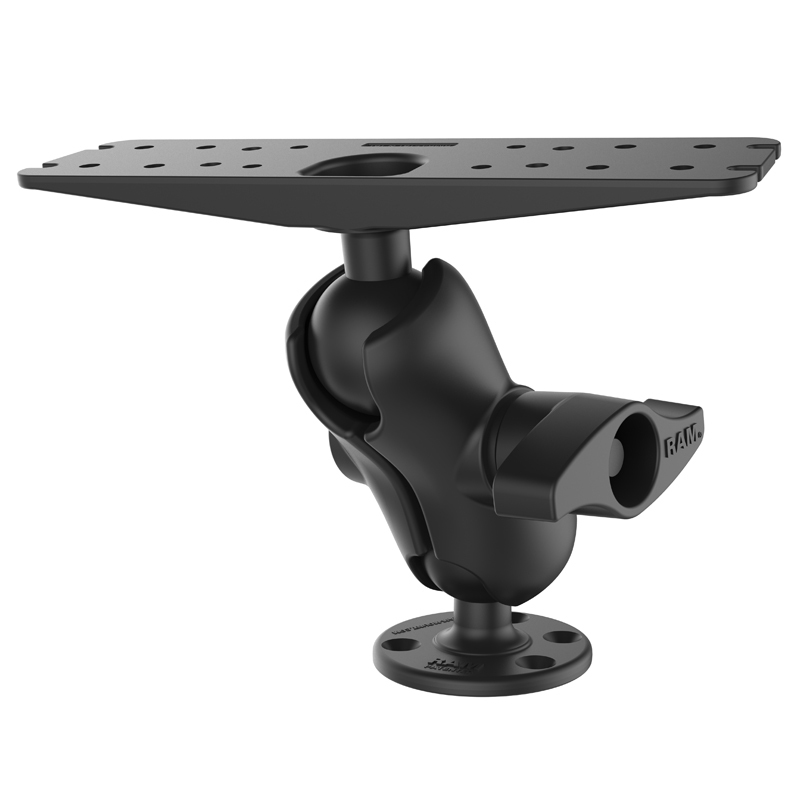

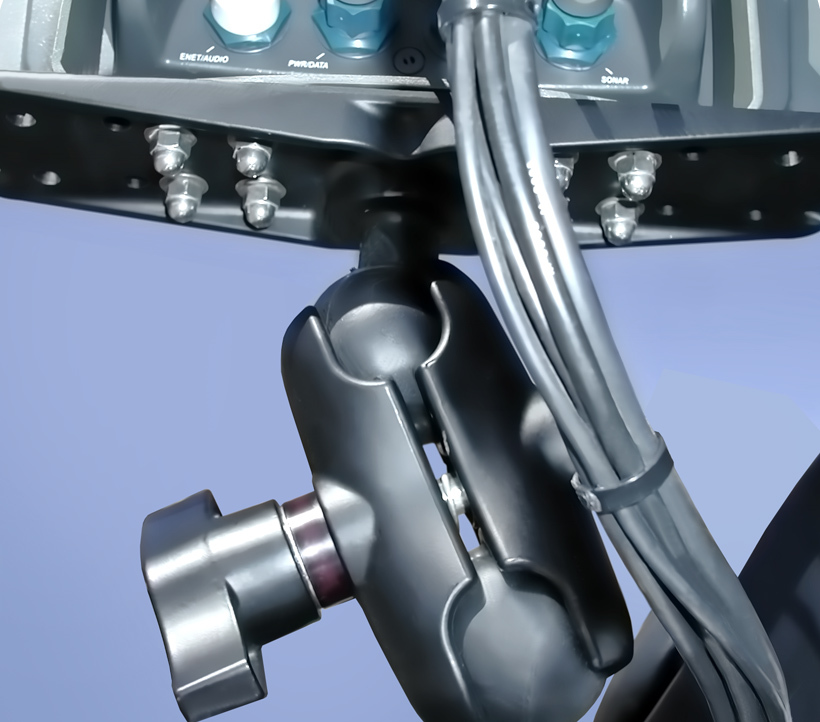

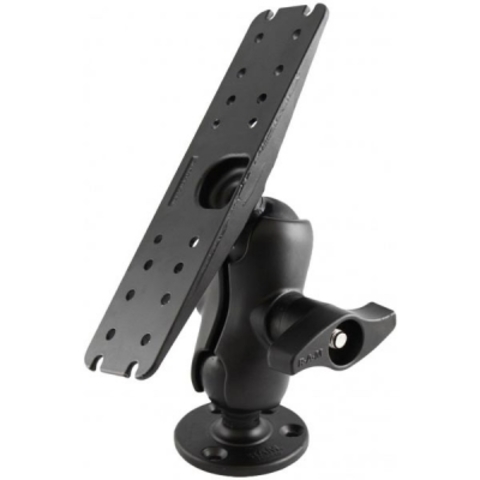

The RAM-D-111U consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Overall Length:
11.5"
Weight Capacity:
Up to 15 lbs.

Plate Hole Patterns:
http://www.rammount.com/files/pdf/RAM-D-111BU.pdf

Specs & Features
Material:
Powder Coated Marine Grade Aluminum

Ball Size:
2.25" Rubber "D" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Weight:
4.47 lbs.

Compatible Devices
Garmin® Fishfinders and GPS Chartplotters Humminbird Fishfinders and GPS Chartplotters Lowrance Fishfinders and GPS Chartplotters Raymarine Fishfinders and GPS Chartplotters
